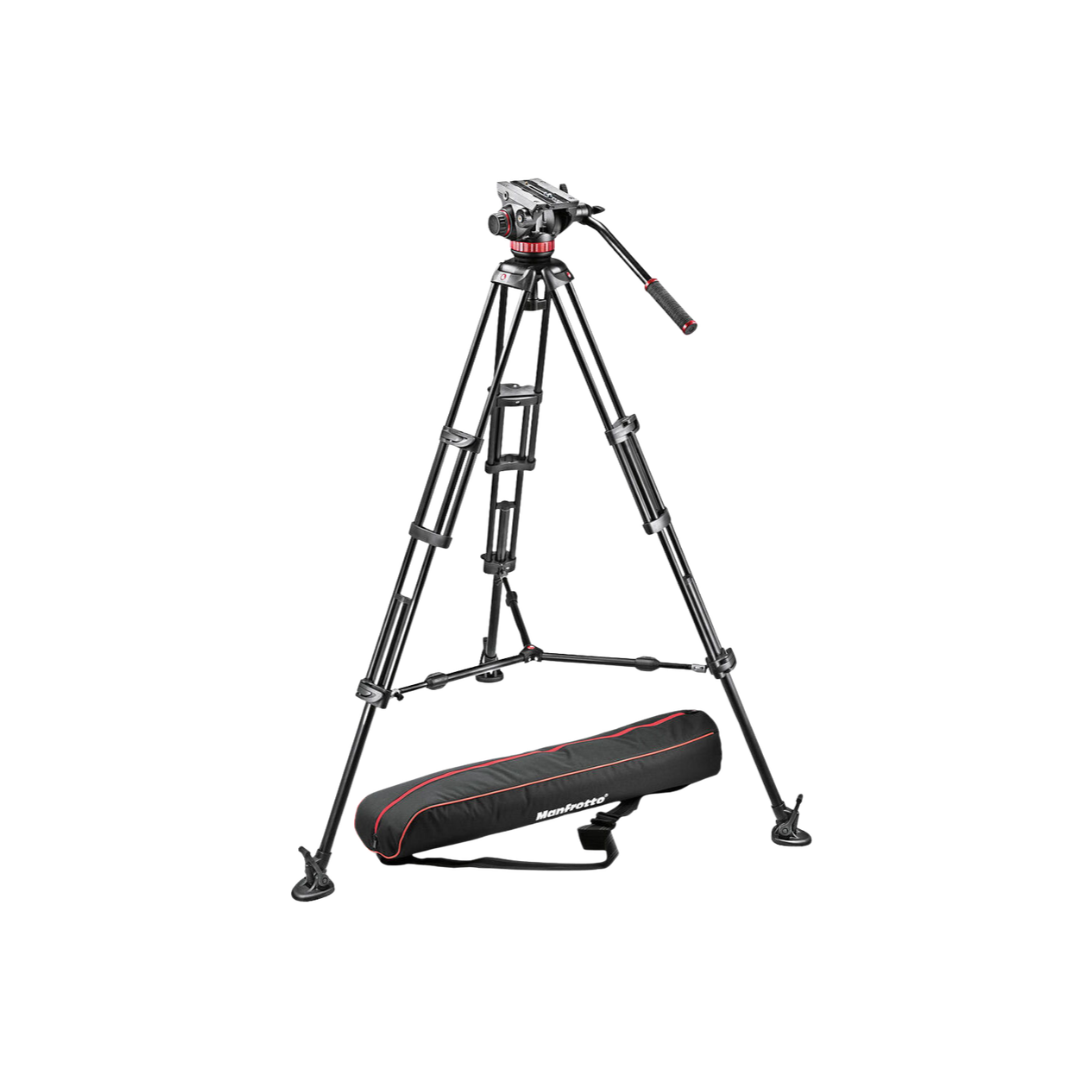

Manfrotto Professional Fluid Video System MVH502A 546BK-1 Tripod Head Set

◾Complete All-in-One System: Includes a professional fluid video head, 2-stage aluminium legs, and a mid-level spreader in one complete package.

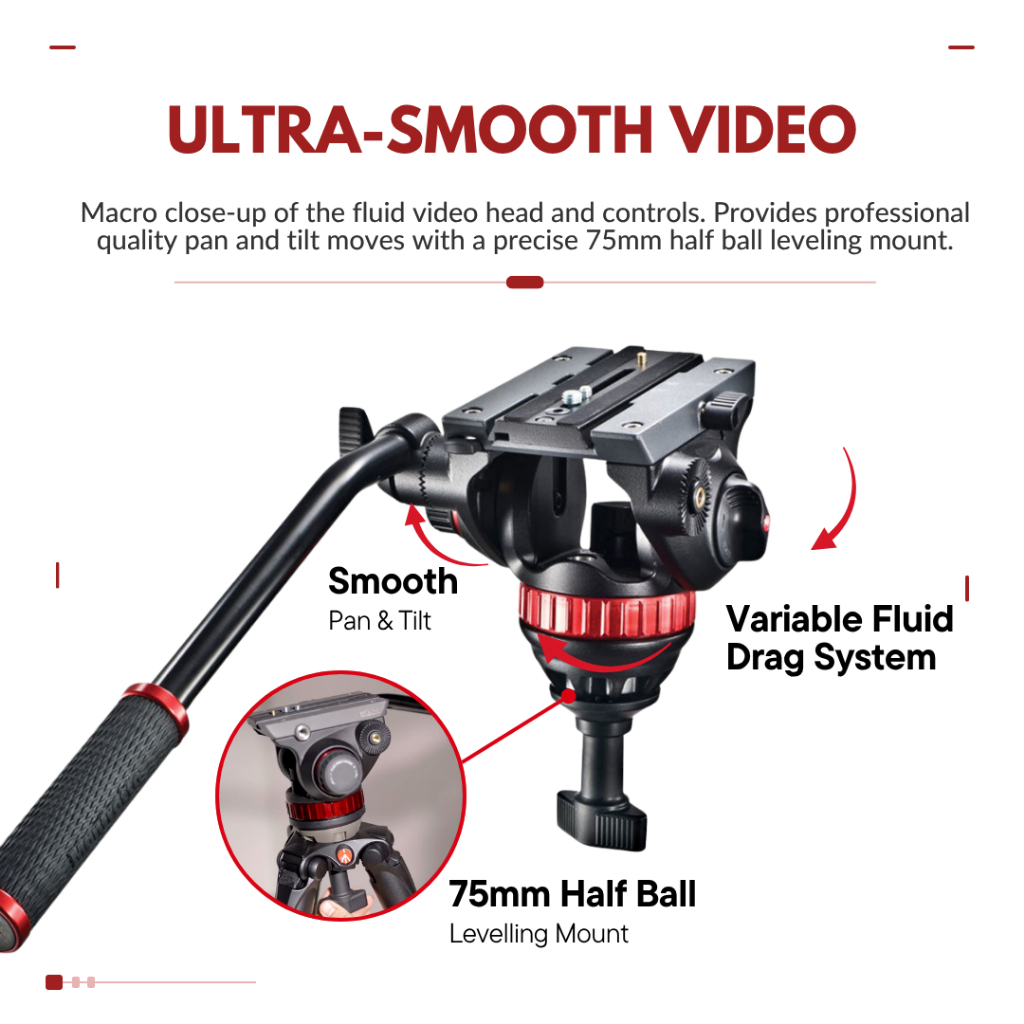

◾Pro-Grade Fluid Pan & Tilt: Delivers smooth, cinematic camera motion with a fixed 4kg counterbalance and supports payloads up to 10kg.
◾Quick & Precise Leveling: Features a 75mm half-ball mount for rapid, accurate leveling on any shot.

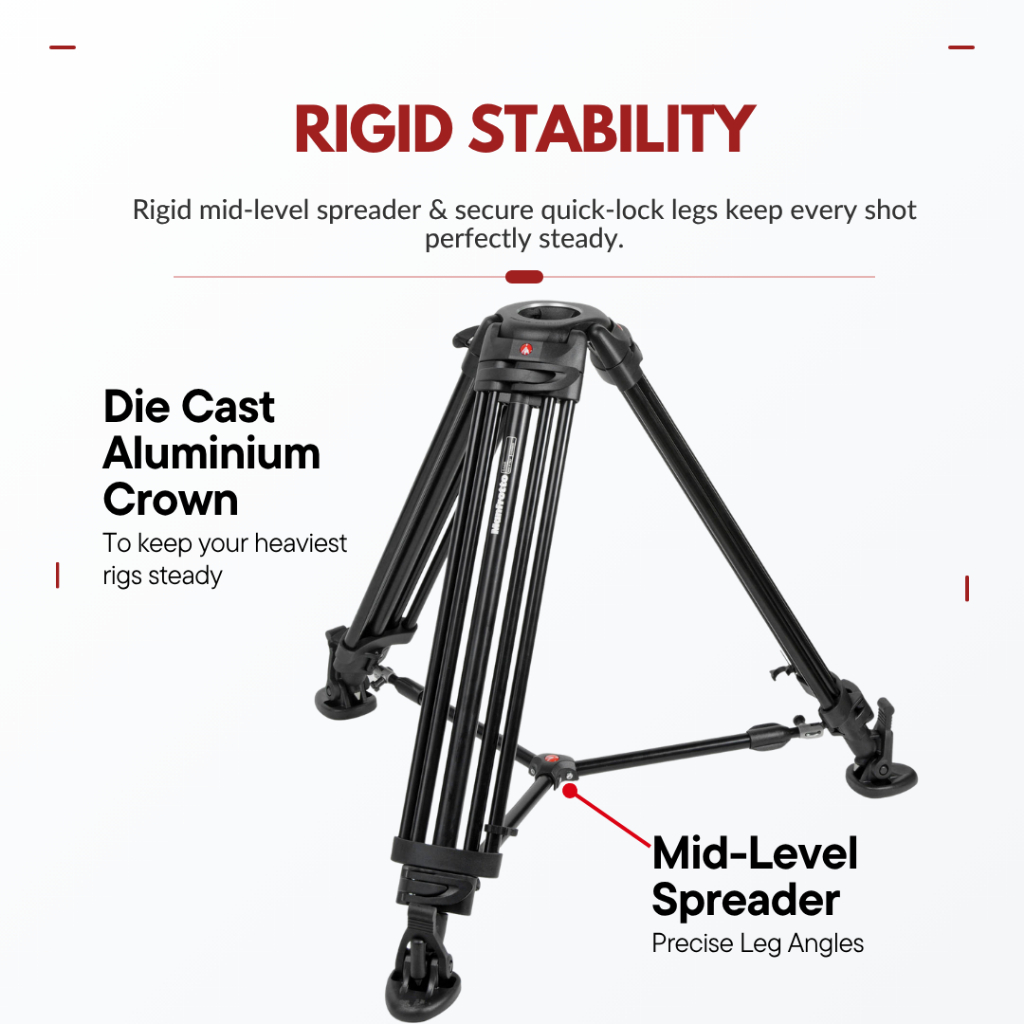

◾Rigid & High-Capacity Construction: Built with a die-cast aluminium crown capable of supporting up to 20kg of total system load.

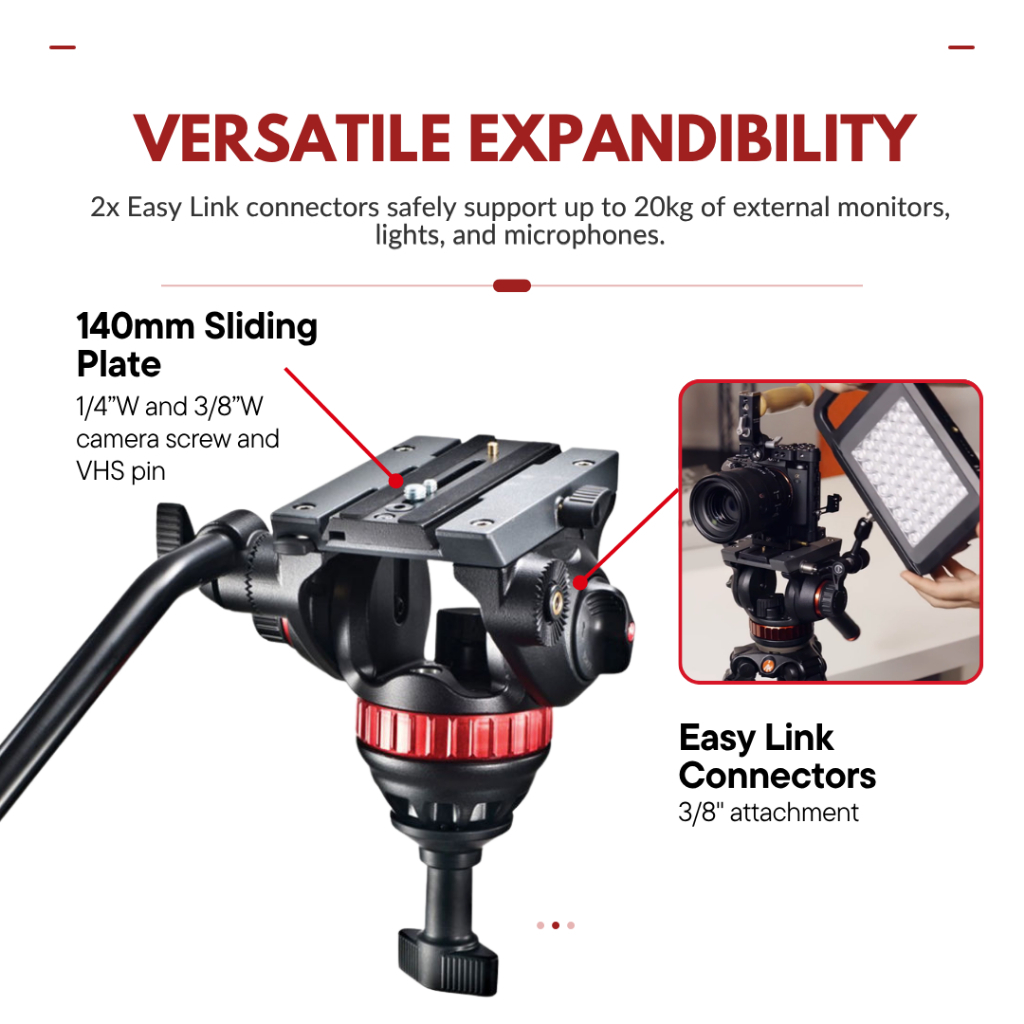

◾Dual Easy Link Connectors: Two built-in thread ports allow effortless mounting of external monitors, LED lights, or microphones directly to the head.

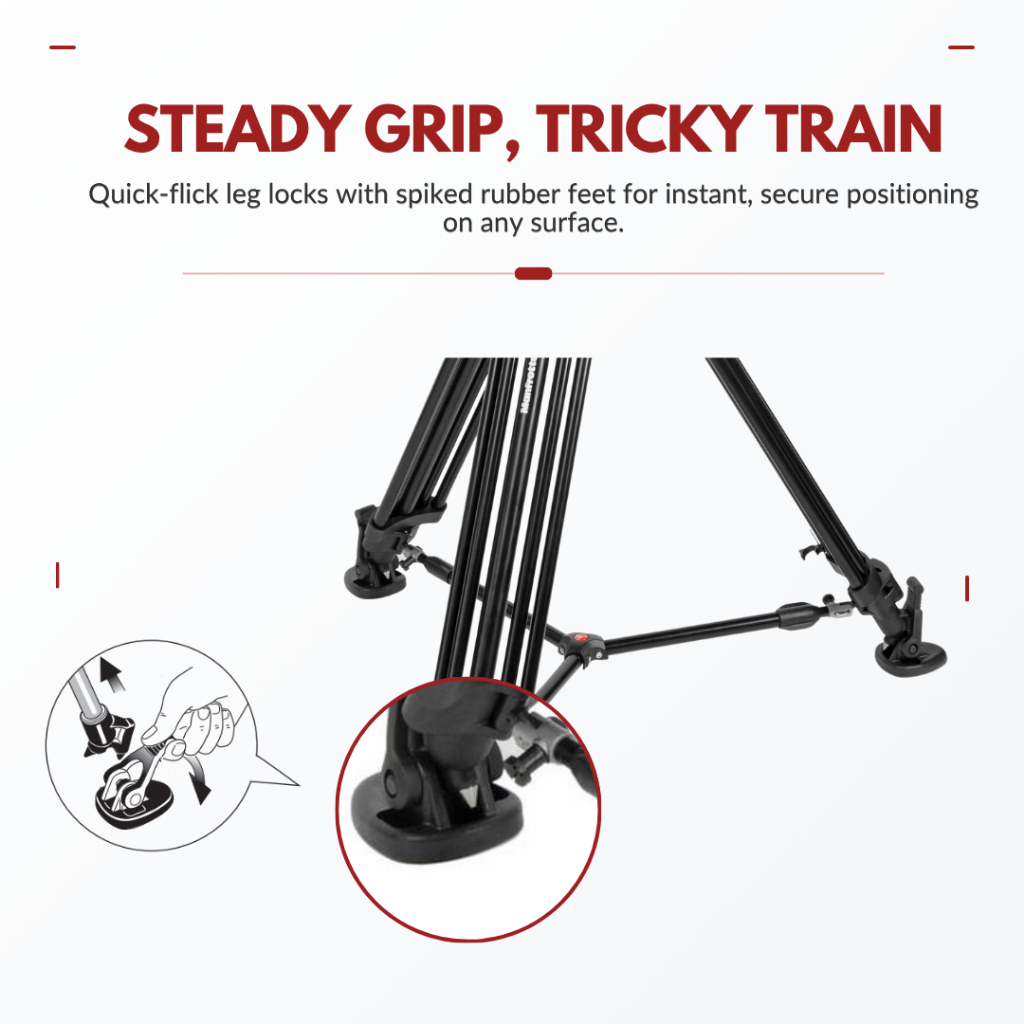

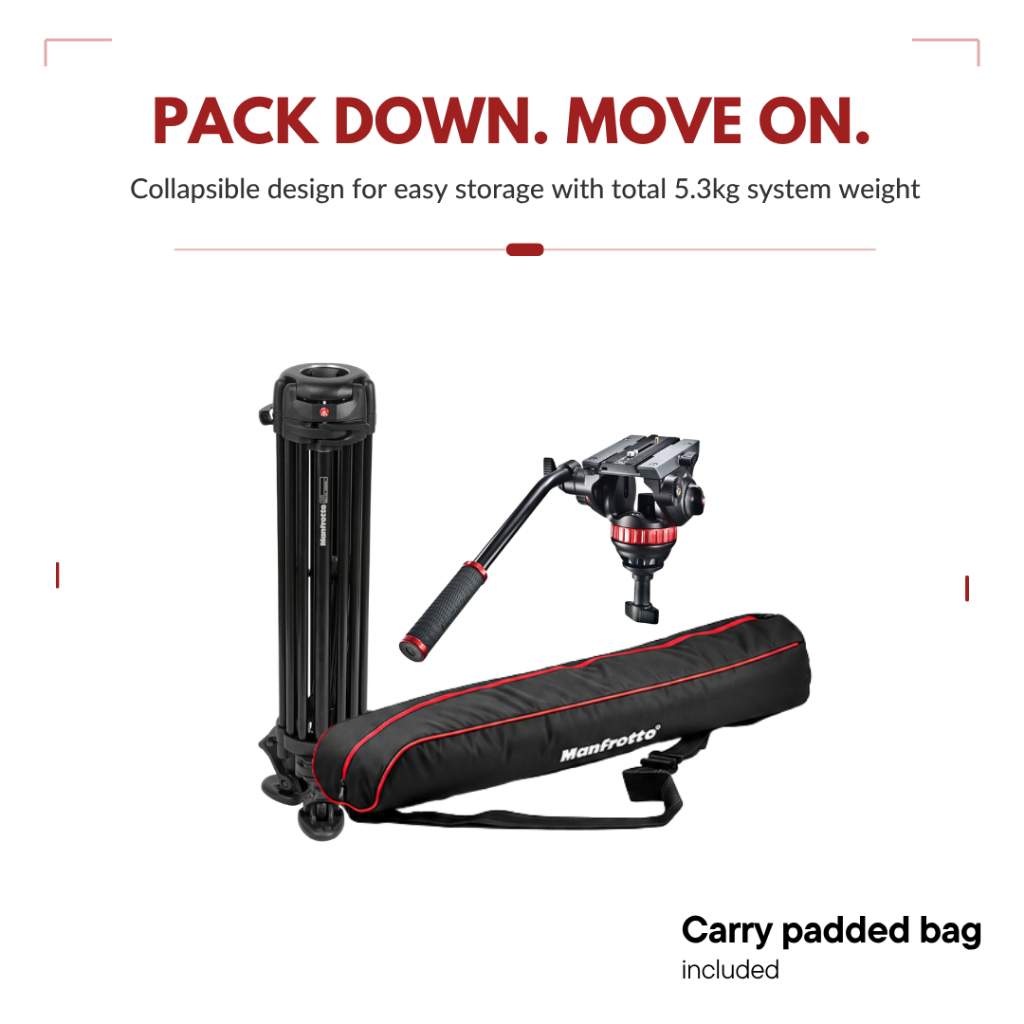

◾Fast & Secure Setup: Ergonomic flick-handle leg locks ensure instant locking and easy collapsing into a compact, portable size.
◾All-Terrain Stability: Spiked rubber feet with removable rubber overshoes provide maximum traction and wobble-free stability on tricky ground.

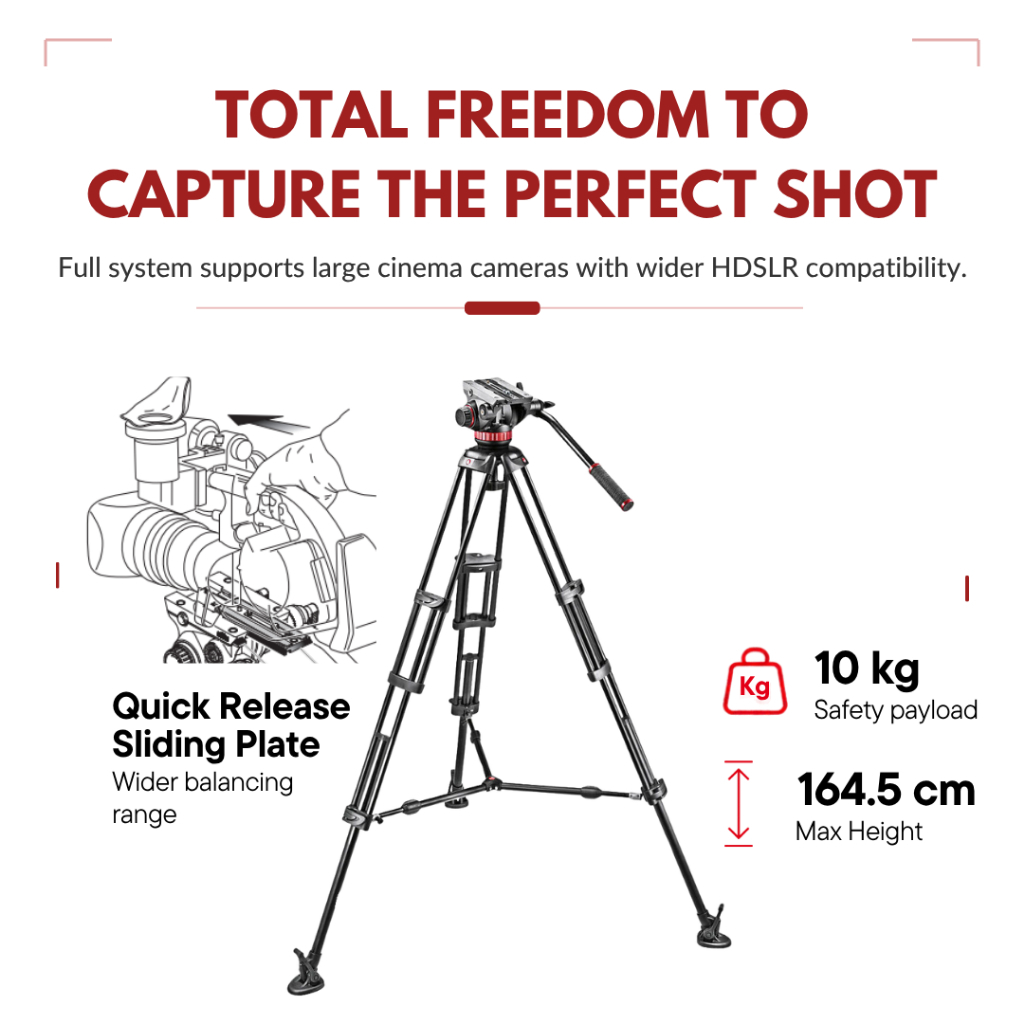

◾Wide Rig Compatibility: Designed to support wider HDSLRs, interchangeable lens cinema cameras, and standard tripod dollies.

Weight: 5.3 kg
Safety Payload UNI/PdR 105:2021: 10 kg
Counterbalance System: Fixed
Counterbalance Weight: 4 kg
Maximum Height: 164.5 cm
Min Height: 41 cm
Bubble Spirit Level (No.): 1
Center of gravity: 55 mm
Closed Length: 83 cm
Top Attachment: 1/4″ screw, 3/8″ screw attachment type
Ball Flat: 75 Ball
Easy Link: Yes
Front Tilt: -80° / +90° tiltrange
Head Type: Video/Fluid Head
Leg Type: Twin
Leg Lock Type: Flip Lock
Leg Sections: 3
Legs Tube Diameter
16, 25 mm
Material: Aluminum
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -20 °C
Pan Bar Included: Yes
Pan Drag: continuously adjustable from 0 to max level
Panoramic Rotation: 360 °
Plate Type: 504PLONG
Quick Release: Yes
Spreader: mid level – variable arm length with ‘click stop’ set positions
Tilt Drag: continuously adjustable from 0 to max level
Accessory Compatibility: MVAPANBARM; MVAPANBARL; 502HLV; 509HLV; 114MV; 181B; 165MV;
